Sheave Blocks

Click links for additional info:   Documents    Photos

 Specifications   for New Joy Sheave Blocks


Sheave Size

6'

8'

Part Number

X4106-18

X4108-49

Max Size of Rope Used

1/2'

5/8'

Maximum Capacity

6,000 lb. - 2428.2 kg

8,000 lb. - 3237.6 kg

Recommended HP

5 to 15

5 to 30

Throat Opening - Width

1-9/16'

1-11/16'

Throat Opening - Height

1-5/8'

2-1/8'

Length Overall

15-3/8'

18-3/4'

Width Overall

7-1/8'

9'

Weight

22 lb. - 8.9 kg

45 lb. - 18.2 kg





NELMACO   EASTERN   LTD

1020 Elisabella Street, Sudbury, ON      P3A 5K2    Canada

Tel: 705-560-3705                             Fax: 705-560-6983

Email: info@nelmaco.com  Website: www.nelmaco.com



ORIGINAL EQUIPMENT & PARTS MANUFACTURER OF JOY SLUSHER/HOIST PARTS



Documents


6" and 8" Sheave Blocks
File: Sheave Block Spec Sheet.pdf

6" & 8" Sheve Blocks
File: TLB Series Sheave Blocks.jpg

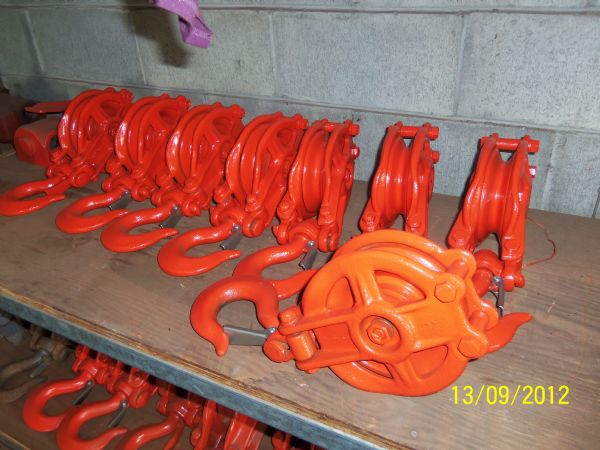

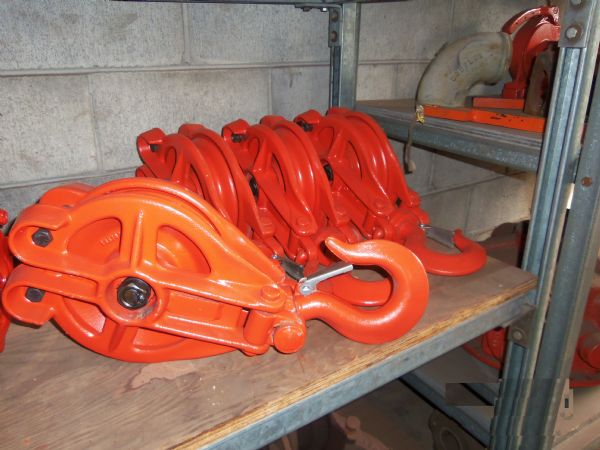

Photos
